Datasheet & Application Guide:
1L-MSM-114 Wide Gap Reed Switch
Model No. 1L-MSM-114
Variants of 1L-MSM-114:

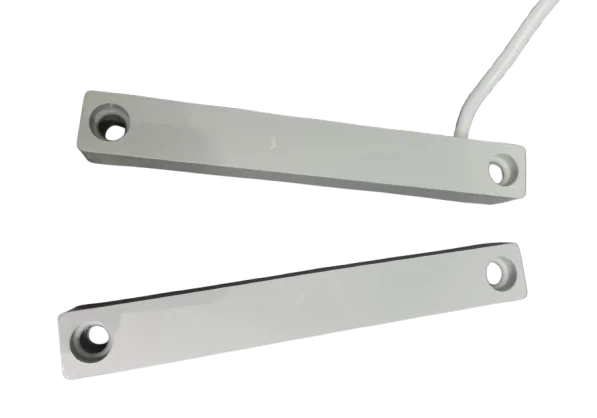

1L-MSM-114 NO

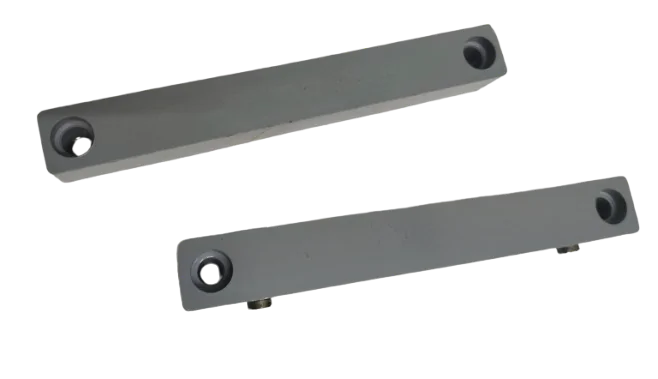

1L-MSM-114T NO
Technical Specifications:
Switch Type (1L-MSM-114) | NO | NO |
|---|---|---|
| Voltage | 200 VDC | 200 VDC |
| Current | 0.5 A | 0.5 A |
| Power | 10 W | 10 W |
| Operating Gap (min.) | 50 | 50 |

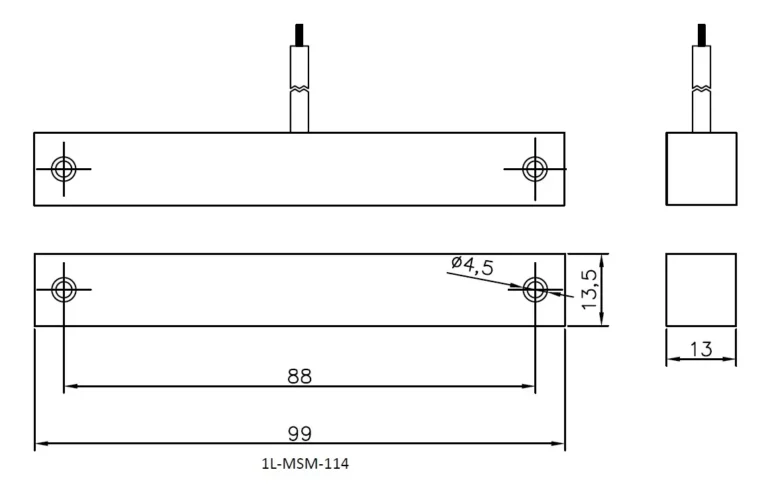

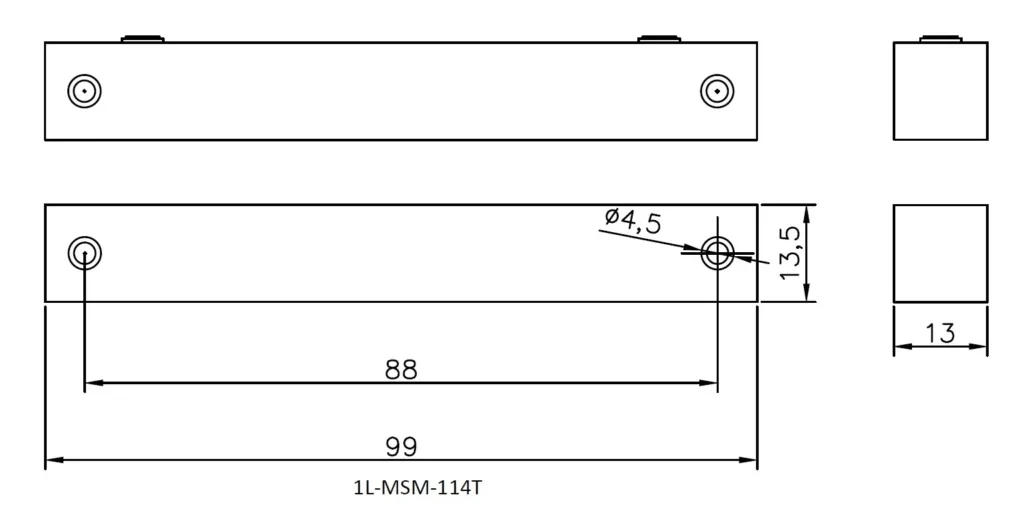

| Dimensions (LxWxH) | 99 x 13.5 x 13 | 99 x 13.5 x 13 |
| Wire Type | PVC | Terminal for Connection |
| * Wire Length (std.) | *4′ | N.A. |
| Core Size | 2 Core 22 AWG | N.A. |
| Operating Temp. | -20°C to +70°C | -20°C to +70°C |
| Storage Temp. | -40°C to +85°C | -40°C to +85°C |
| Humidity | Up to 95% non-condensing | Up to 95% non-condensing |
| Housing Material | ABS Plastic | ABS Plastic |
| Mounting Type | Screw Mount | Screw Mount |
| Mechanical Life | Over 10 million cycles | Over 10 million cycles |
| Contact Resistance | 0.1 Ω | 0.1 Ω |
| Housing Colour | Grey | Grey |
| Wire Colour | Grey | N.A. |
