Datasheet & Application Guide:

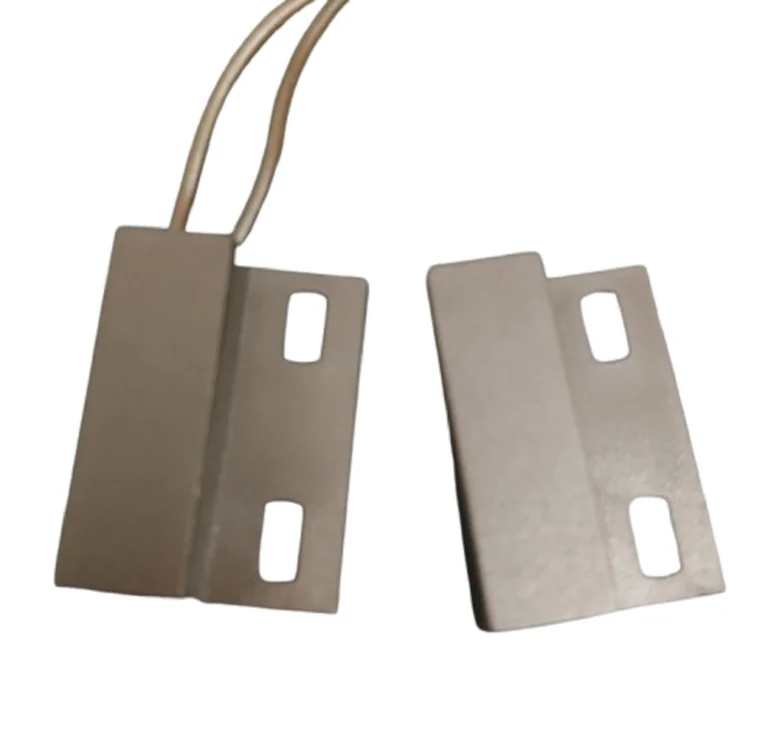

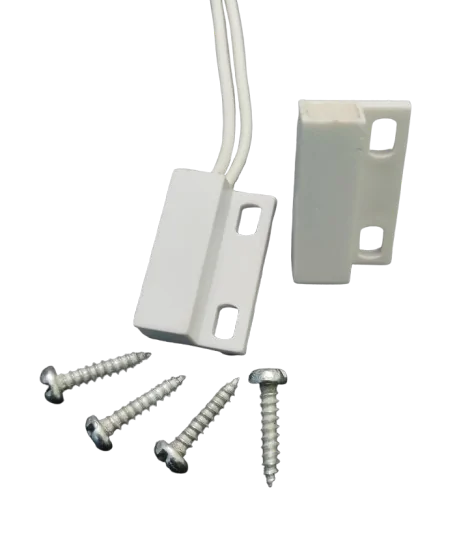

1L-MSM-116 Big Flange Mount Reed Switch
Model No. 1L-MSM-116
Technical Specifications:
| Switch Type (1L-MSM-116) | NO | NC |
|---|---|---|
| Voltage | 200 VDC | 60 VDC |
| Current | 0.5 A | 0.25 A |
| Power | 10 W | 4 W |
| Operating Gap (min.) | 18 | 10 |

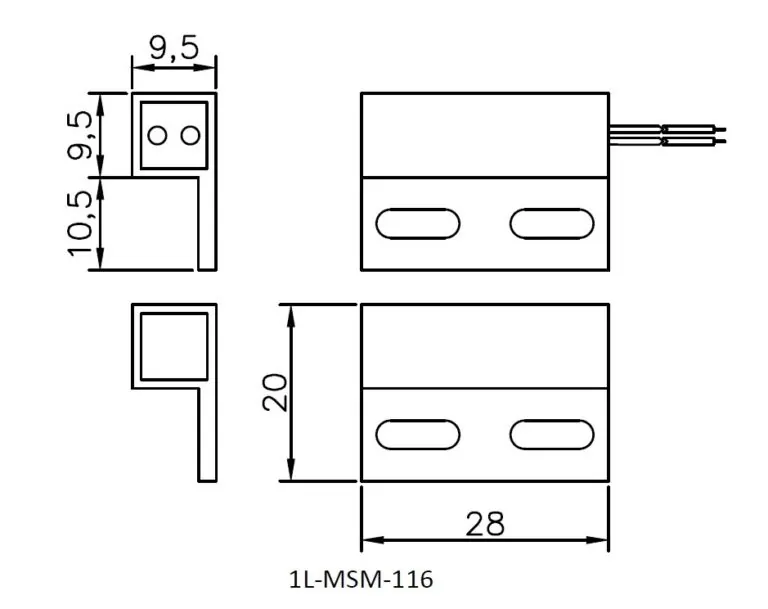

| Dimensions (LxWxH) | 28 x 20 x 9.5 | 28 x 20 x 9.5 |
| Wire Type | PVC | PVC |
| * Wire Length (std.) | 18″ | 18″ |
| Core Size | 14/38 ATC | 14/38 ATC |
| Operating Temp. | -20°C to +70°C | -20°C to +70°C |
| Storage Temp. | -40°C to +85°C | -40°C to +85°C |
| Humidity | Up to 95% non-condensing | Up to 95% non-condensing |
| Housing Material | ABS Plastic | ABS Plastic |
| Mounting Type | Big Flange Mount | Big Flange Mount |
| Mechanical Life | Over 10 million cycles | Over 10 million cycles |
| Contact Resistance | 0.1 Ω | 115 mΩ |
| Housing Colour | White / Brown | White |
| Wire Colour | White / Brown | Black |
