Datasheet & Application Guide:

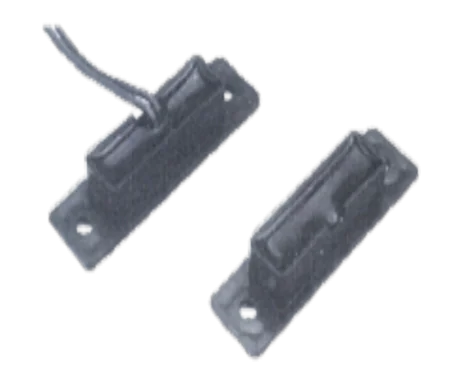

Collared Rectangular type with Wire Leads
Model No. 1L-MSR-102
Key Features
• Recessed Mount Type
• Flat Shaped with Collar Flange for better retention
• 18″ Long Wire Leads
• Operate Gap 5/8″ (16 mm)
Applications
- IOT
- Digital & Mobile Electronics
- Domestic & White Goods
- Medical
- Automotive
- Construction & Security
- Robotics & Automation
- Marine & Weather
- Sports, Recreation, Hobbies & Toys
Specification
- Contact Rating : 10W/VA
- Switching Voltage (Max.) : 200 VDC
- Switching Current (Max.) : 0.5 Amp.
- Contact Resistance (Min.) : 150 milli ohms
- Life Expectancy : 10 x 10⁶ Operations
- Insulation Resistance : 10 9 ohms
- Shock Resistance : 30G for 11 mSec.
- Vibration Resistance : 20G ( 10 to 1000Hz)
- Plastic Material : ABS Plastic (Unless otherwise specified)
