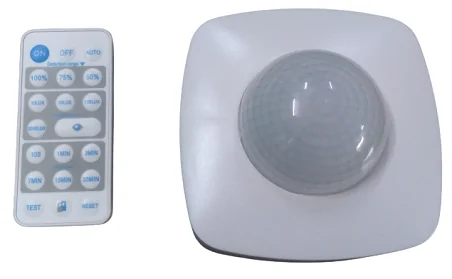

360° Ceiling Mount Occupancy Sensor with IR Remote
Model No. 1L-PS06
The 1L-PS06 – 360° Ceiling Mount Occupancy Sensor with IR Remote is a smart and energy-efficient lighting control solution tailored for indoor environments. Equipped with a passive infrared (PIR) sensor, it detects motion within a full 360° radius and automatically turns on the lights in low-light conditions. To avoid unnecessary power usage, a built-in photocell sensor disables the lighting during daylight hours.

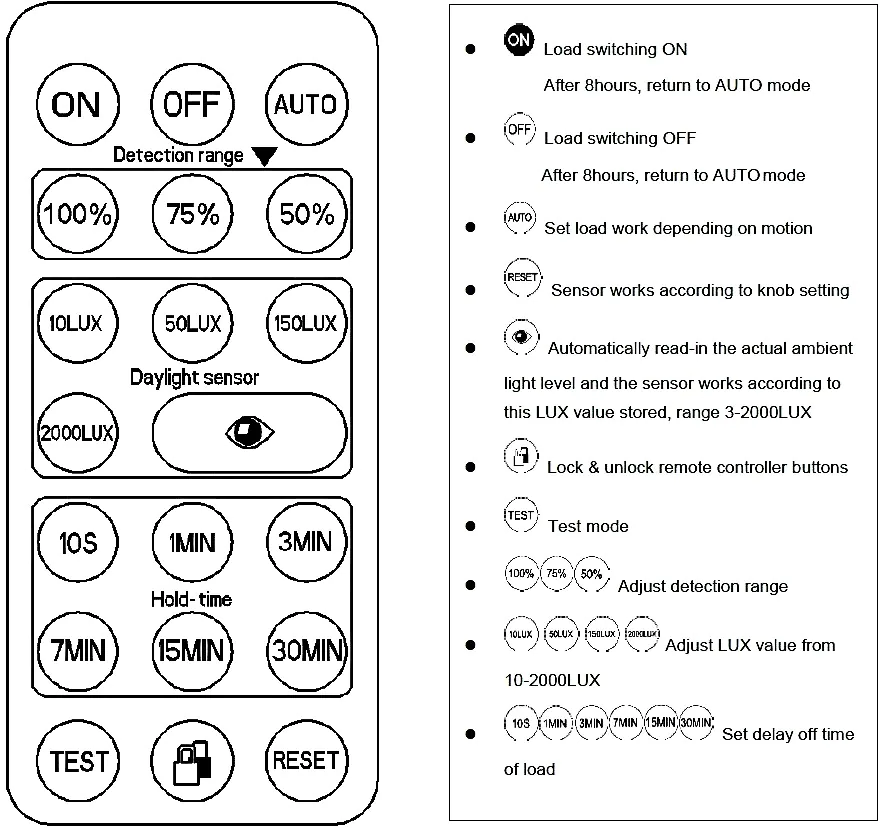

What sets this model apart is its IR remote functionality, which allows users to easily fine-tune key settings such as sensitivity, time delay, and ambient light threshold—eliminating the need for manual access. With a robust load capacity of up to 2000W, the 1L-PS06 is perfect for both security and courtesy lighting applications, offering seamless automation, enhanced energy savings, and effortless user control.

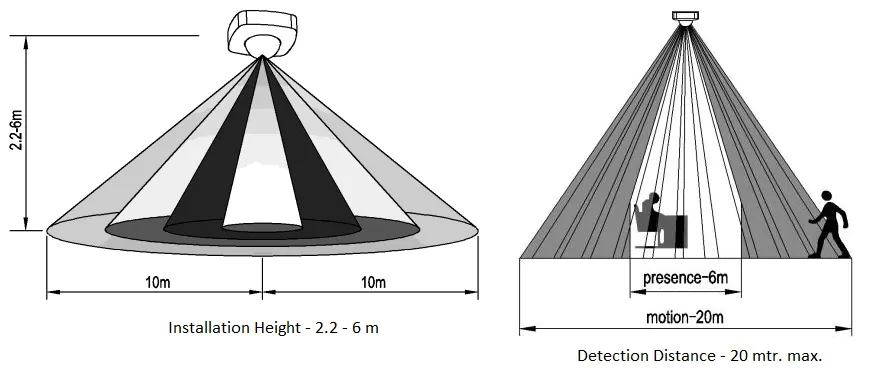

Installation Height & Range of Occupancy Sensor

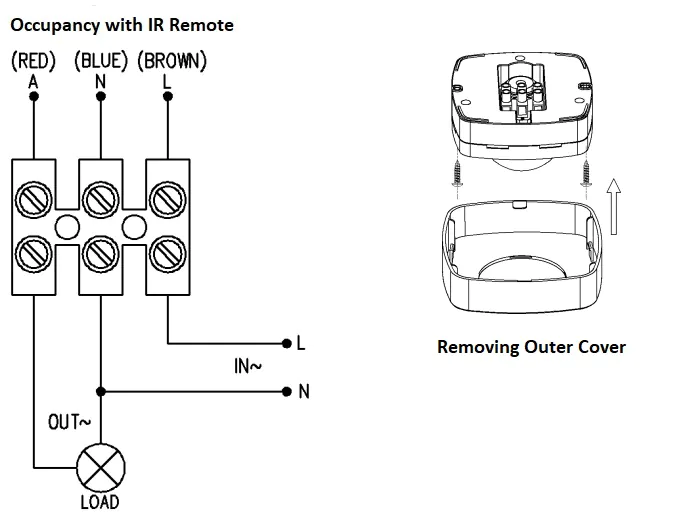

Occupancy Sensor Connection Dig & Occupancy Sensor with IR Remote
Installation Tips 1L-PS041 360° Ceiling Mount Occupancy Sensor:
Since the detector reacts to temperature changes, avoid the following:
- Do not point the detector towards highly reflective surfaces, such as mirrors.
- Avoid installing the detector near heat sources, like heating vents, air conditioning units, or lights.
- Do not direct the detector towards objects that may move with the wind, such as curtains or tall plants.
Sensor Specifications
| Specification | Details |
|---|---|
| Power Source | 220-240V/AC |
| Power Frequency | 50Hz |
| Rated Load | Max. 2000W (1000W for LED) |
| Power Consumption | Approx. 0.5W |
| Detection Angle | 360° |
| Detection Range | 50%, 75%, 100% (Adjustable) |
| Detection Distance | Max. 20m (<24℃) |
| Detection Moving Speed | 0.6-1.5m/s |
| Daylight Sensor | <3-2000LUX (Adjustable) |
| Hold Time | Min. 10 sec ±3 sec, Max. 30 min ±2 min |
| Installation Height | 2.2 – 6m |
| Working Temperature | -20°C ~ +40°C |
| Working Humidity | <93%RH |
