3/8″ (9mm) dia. with Terminal Connector (Short)

3/8″ (9mm) dia. with Terminal Connector (Short)

✔ Fast Switching: Operates significantly faster than standard relays thanks to lightweight contacts
✔ 3/8″ Diameter Design: Compact press-fit design for clean recessed mounting
✔ Terminal Connector: No cable joints needed—ensures a more reliable and neater installation
✔ Supports 22 AWG Wire: Compatible with both solid and stranded 22 AWG wires
✔ Shorter Length: Ideal for limited-depth or shallow mounting spaces
✔ Operating Gap: 5/8″ (16 mm) minimum for effective actuation
✔ Quick Installation: Saves time and effort during setup, perfect for fieldwork
✔ Ideal Use: Security sensors in doors/windows, automation panels, and hidden entry detection

Categories: ,

Description

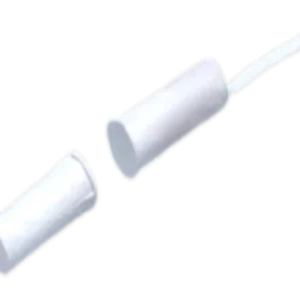

Recessed Mount Magnetic Switches operate similarly to relays by closing an electrical contact in the presence of a magnetic field. When a nearby magnet—either permanent or electromagnetic—approaches, the magnetic force pulls the contacts together, completing the circuit. When the magnet is removed, spring tension separates the contacts, breaking the connection. Due to their lightweight internal contacts, these switches offer response speeds up to 10 times faster than conventional relays. This specific model features a 3/8″ diameter body with a terminal connector for quick, tool-free installation. It supports both solid and stranded 22 AWG wire, eliminates cable joints for improved reliability, and is ideal for tight, concealed applications.
